Eden C Batch only

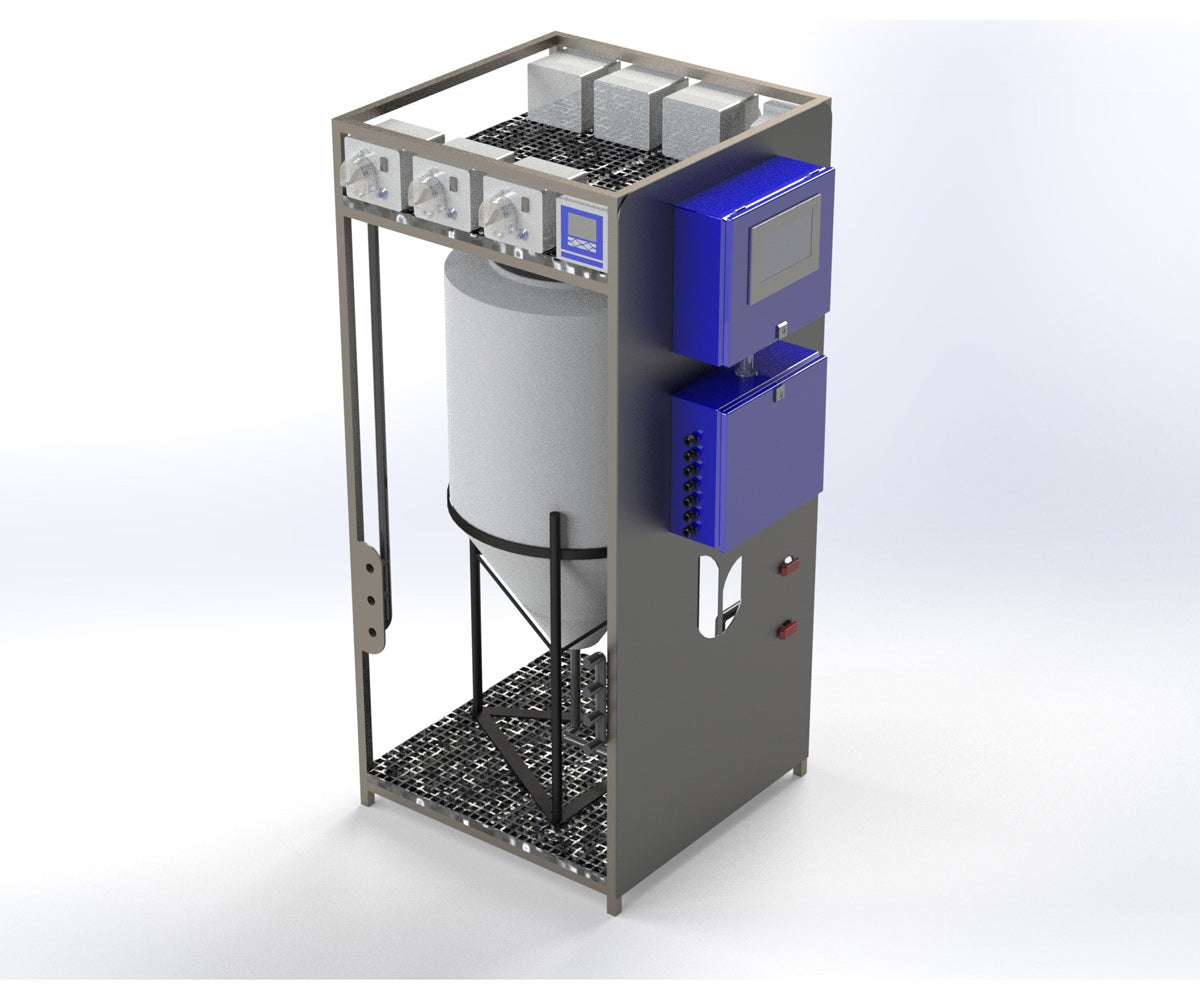

Total Grow Control Eden C - Batch Only

Meet Eden C Batch, the nutrient delivery system for smaller grows. It is small yet precise, inexpensive and intelligent. Eden C’s proprietary control system is sleek and simple as it does not require complicated programming. Simply plug the system in and use the intuitive touchscreen interface to create your nutrient recipe and let Eden C begin controlling nutrient delivery to your plants.  Rest easy knowing that you can monitor Eden C from your phone, tablet, or computer while you’re away.  Eden C installs with ease fitting through standard single doors, plugs into a nearby 120V outlet,  and has standard 1” NPT plumbing connections.

Additional Features:

• Feed pressure- line burst detection
• Monitors water temperature, EC, and pH

Requirements:

• Water: 15-20 GM
• Electric: 20 amp, 120 VAC
• 1 Phase
• Cat 5 (Ethernet Cable)

Technical Specs:

• Batch system
• 60 gallon conical bottom tank
• Irrigation delivery to 4 nutrient zones
• 9” touchscreen user interface
• Ability to for recipes with up to 4 nutrients
• pH adjustment with acid and caustic pumps
• ½ HP irrigation delivery pump
• User notification for irrigation alerts
• Mixing loop with EC and pH verification
• 2 flow meters- incoming and outgoing
• 40 PSIG maximum supply pressure
• Plug and play
• Nutrient delivery flow up to 20 GPM
• Nutrient injection rates of 4.04 GPH
• Dimensions- 32” W x 32” D x 60” H
• Weight- 428 lbs
