Eden Lt Batch only

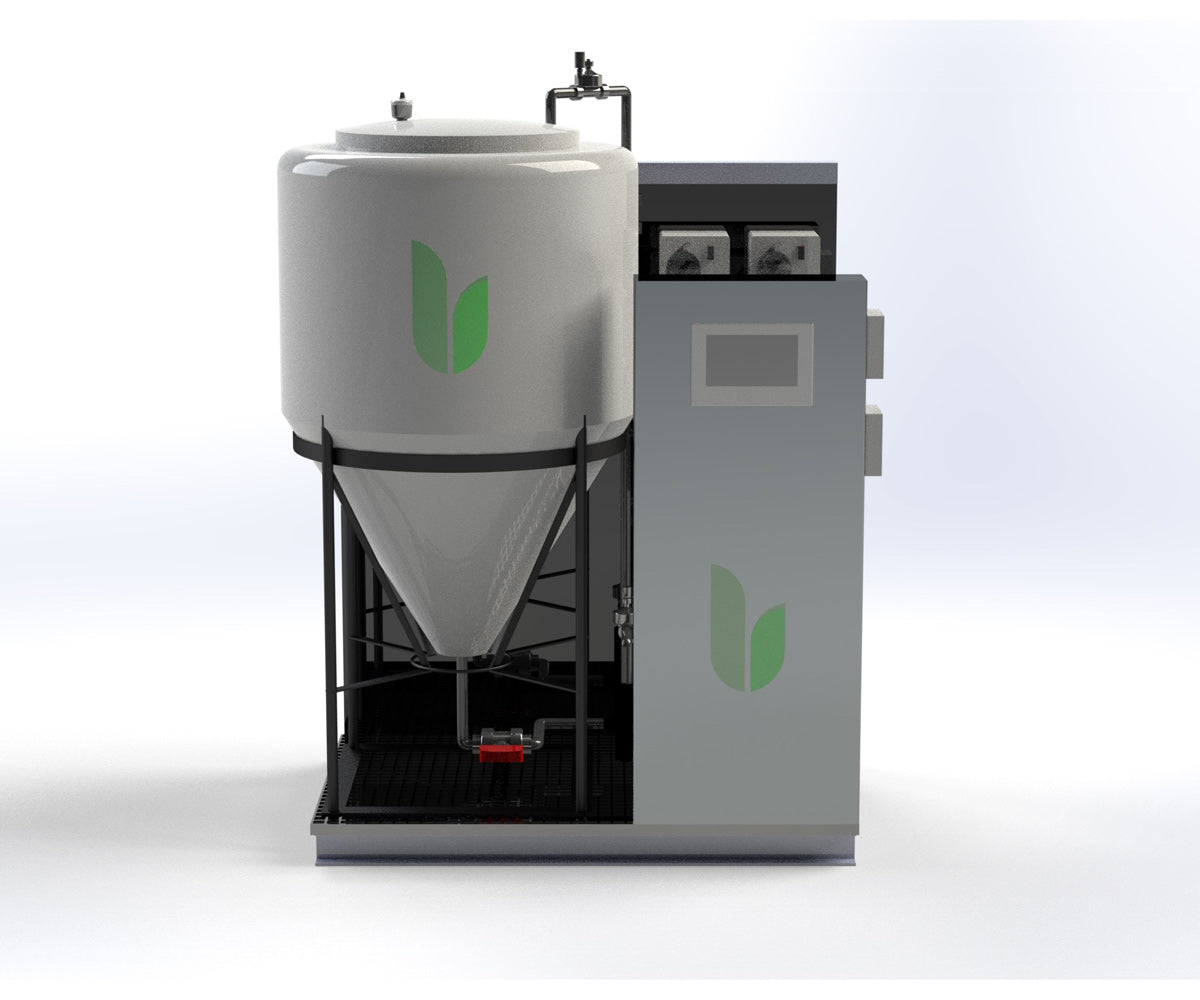

Total Grow Control Eden LT - Batch Only

Meet Eden LT Batch, the larger sibling of Eden C.  Eden LT boasts a larger Nutrient Delivery Tank, additional nutrients, and 10 irrigation zones.  Eden LT is still small yet precise, inexpensive and intelligent.  Eden LT’s proprietary control system is sleek and simple as it does not require complicated programming. Simply plug the system in and use the intuitive touchscreen interface to create your nutrient recipe and let Eden LT begin controlling nutrient delivery to your plants.  Rest easy knowing that you can monitor Eden LT from your phone, tablet, or computer while you’re away.  Eden LT installs with ease fitting through standard single doors, plugs into a nearby 120V outlet, pre wired, has standard 1” NPT plumbing connections.

Additional Features:

• Monitors water temperature, EC, and pH
• Feed pressure- line burst detection

Requirements:

• Water: 15-20 GM
• Electric: 20 amp, 120 VAC
• 1 Phase
• Cat 5 (Ethernet Cable)

Technical Specs:

• Batch system
• 100 gallon conical bottom tank
• Irrigation delivery to 10 nutrient zones
• 9” touchscreen user interface
• Ability to for recipes with up to 6 nutrients
• pH adjustment with acid and caustic pumps
• ½ HP irrigation delivery pump
• User notification for irrigation alerts
• Mixing loop with EC and pH verification
• 2 flow meters- incoming and outgoing
• 40 PSIG maximum supply pressure
• Plug and play
• Nutrient delivery flow up to 20 GPM
• Nutrient injection rates of 4.04 GPH
• Dimensions- 60” W x 36” D x 60” H
• Weight- 558 lbs
