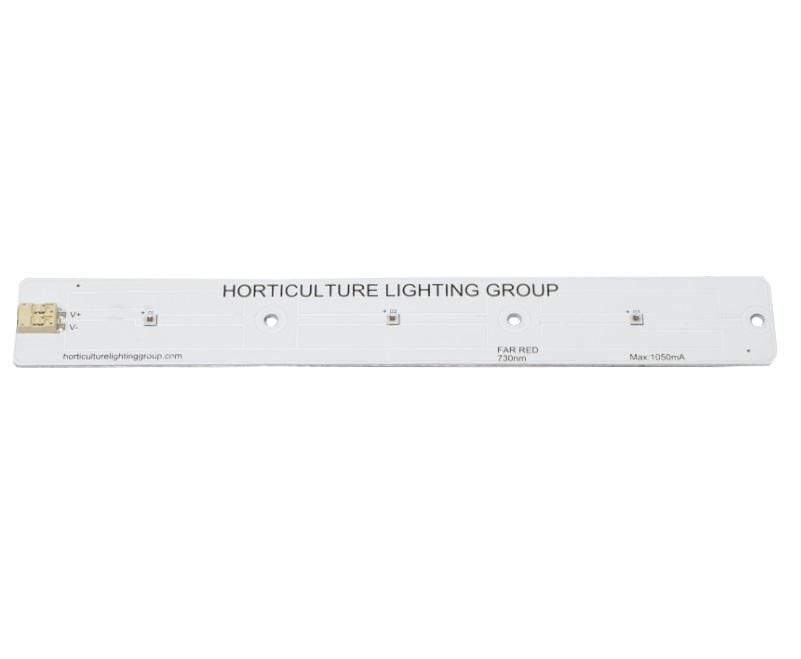

HLG QB 3 FAR RED

SPECIFICATIONS

• Forward Voltage Vf = 6.7 VDC -7.0 VDC @ 1000mA
• 220 mm x 30mm
• Peak Wavelength 730nm
• Max Recommended Current 1000mA
• Recommended Installation: Screw, Double side adhesive tape.

RECOMMENDED FAR RED LED MODULES FOR EVEN COVERAGE

RECOMMENDED USAGE

Flowering Initiator. Power on for 3 to 10 minutes during transition from Lights On (Photo Period) to Lights Off (Dark Period).

DRIVER OPTIONS (CONSTANT CURRENT LED DRIVER ONLY)

APC-8-700 - One or more QB 3 in Parallel
APC-12-700 - One or Two QB 3 in Series
APC-16-700 - Two or Three QB 3 in Series
APC-25-700 - Three or Four QB 3 in Series
LPC-20-700 - Three or Four QB 3 in Series

Meanwell LDD H are a great way of using standard 12v - 54V power supplies to power QB 3 strips. Standard 12V power supply can power 1 board with LDD. Standard 18V power supply can power 2 board in series on a LDD. Standard 24V power supply can power 3 board in series on a LDD. These step down DC-DC drivers are available in 300mA, 350mA, 500mA, 600mA, 700mA, 1000mA. LDD can convert 10 to 54VDC input into Constant Current to power for QB 3

LDD-300HW
LDD-350HW
LDD-500HW
LDD-600HW
LDD-700HW
LDD-1000HW
