HLG QB11 QUANTUM BOARD

HLG QB11 QUANTUM BOARD

$ 49.00 USD
$ 49.00 USD
Sale Sold out

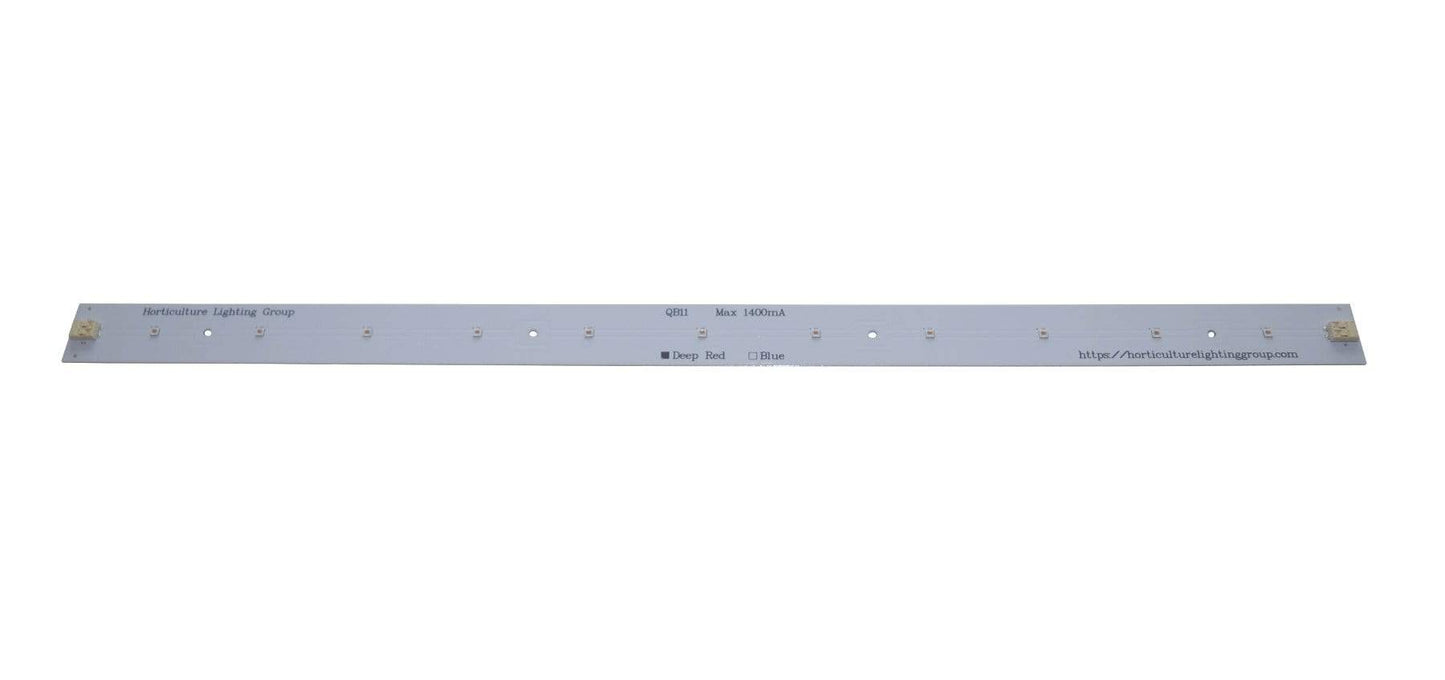

QB11 QUANTUM BOARDS DEEP RED

High efficiency Deep Red Strip

Test Report

55.6% radiometric efficiency at 350mA (4.75 watts radiometric output with 8.54 watts electrical Input)

SPECIFICATIONS

  • 11pcs High Power Deep red 660nm Diodes
  • Peak wavelength 660nm
  • Forward Voltage 22.5+ VDC at 350mA, 24.70+ VDC at 700mA
  • Dimensions 30mm x 560mm
  • Max current per strip 1400mA
  • Heatsink required for over 1050mA



QB11 QUANTUM BOARDS RED

High efficiency Red Strip

SPECIFICATIONS

  • 11pcs High Power red 630nm Diodes
  • Peak wavelength 630nm
  • Forward Voltage 23+ VDC at 350mA, 25.5+ VDC at 700mA
  • Dimensions 30mm x 560mm
  • Max current per strip 1400mA
  • Heatsink required for over 1050mA



QB11 QUANTUM BOARDS BLUE

High efficiency Blue Strip

SPECIFICATIONS

  • 11pcs High Power Blue 450nm Diodes
  • Peak wavelength 450nm
  • Forward Voltage 33.80+ VDC at 700mA
  • Dimensions 30mm x 560mm
  • Max current per strip 1400mA
  • Heatsink required for over 1050mA



Molex Connector

    QB 11 Strips have Molex Connectors. +ve and -ve on opposite ends of strip. Wire can be pushed into the connector. To unmate,  push down lever on the housing to allow the wire to be disengaged.

    Molex Lite trap



    DRIVER OPTIONS

    Meanwell LLD H are a great way of using standard power supplies to power QB 11 strips. These step down DC-DC drivers are available in 300mA, 350mA, 500mA, 600mA, 700mA, 1200mA. LDD-xxxHW option comes with wires attached. Also available in Pin and SMT style

    Design considerations

    • Output voltage will always step down by 3 volts from input DC voltage. This means if input in 48 VDC then you cannot max 45VDC in output. Ensure the input is a minimum of QB 11 forward voltage and add another 3 volts
    • LLD H 300mA, 350mA, 500mA, 600mA, 700mA options can accept 2 ~ 52VDC input range. 1200mA option can accept only 2 ~ 46VDC
    • QB 11 Deep red and Blue have different forward voltage. Blue and Deep red cannot be run in parallel together. Blue has as Higher forward voltage.

    Wiring example with QB 288, Meanwell HLG-120H-54 Driver and QB 11 powered through LDD-700HW

    QB 11

    LDD-300HW
    LDD-350HW
    LDD-500HW
    LDD-600HW
    LDD-700HW

    LDD-1200HW

    OTHER DRIVERS FOR SINGLE QB 11 STRIP OR MULTIPLE IN PARALLEL

    APC-16-350
    APC-25-700
    APC-35-1050
    LPC-20-350
    LPC-20-700 for Deep Red only
    LPC-35-700
    LPC-35-1050 for Deep Red only
    LPF-16-30 for Deep Red onlyLPF-16-36
    LPF-25-30 for Deep Red only
    LPF-25-36
    LPF-40-36
    PLD-16-350
    PLD-25-700
    PLD-40-1050B
    PCD-25-700
    LPF-60-36 for 2 or more QB11 in parallel
    LPF-90-36 for 2 or more QB11 in parallel
    HLG-40H-30 for Deep Red onlyHLG-40H-36
    HLG-60H-30 for Deep Red only. 2 or more QB11 in parallel
    HLG-60H-36 2 or more QB11 in parallel



    DRIVERS FOR MULTIPLE QB 11 STRIP IN SERIES

    APC-25-350 for 2x QB 11 in series
    APC-35-500 for 2x QB 11 Deep Red in series
    PLD40-500B for 2x QB 11 in series PCD-40-500BPCD-60-700B HLG-60H-C700 for 3x QB 11 in series HLG-80H-C700 for 4x QB 11 in series
