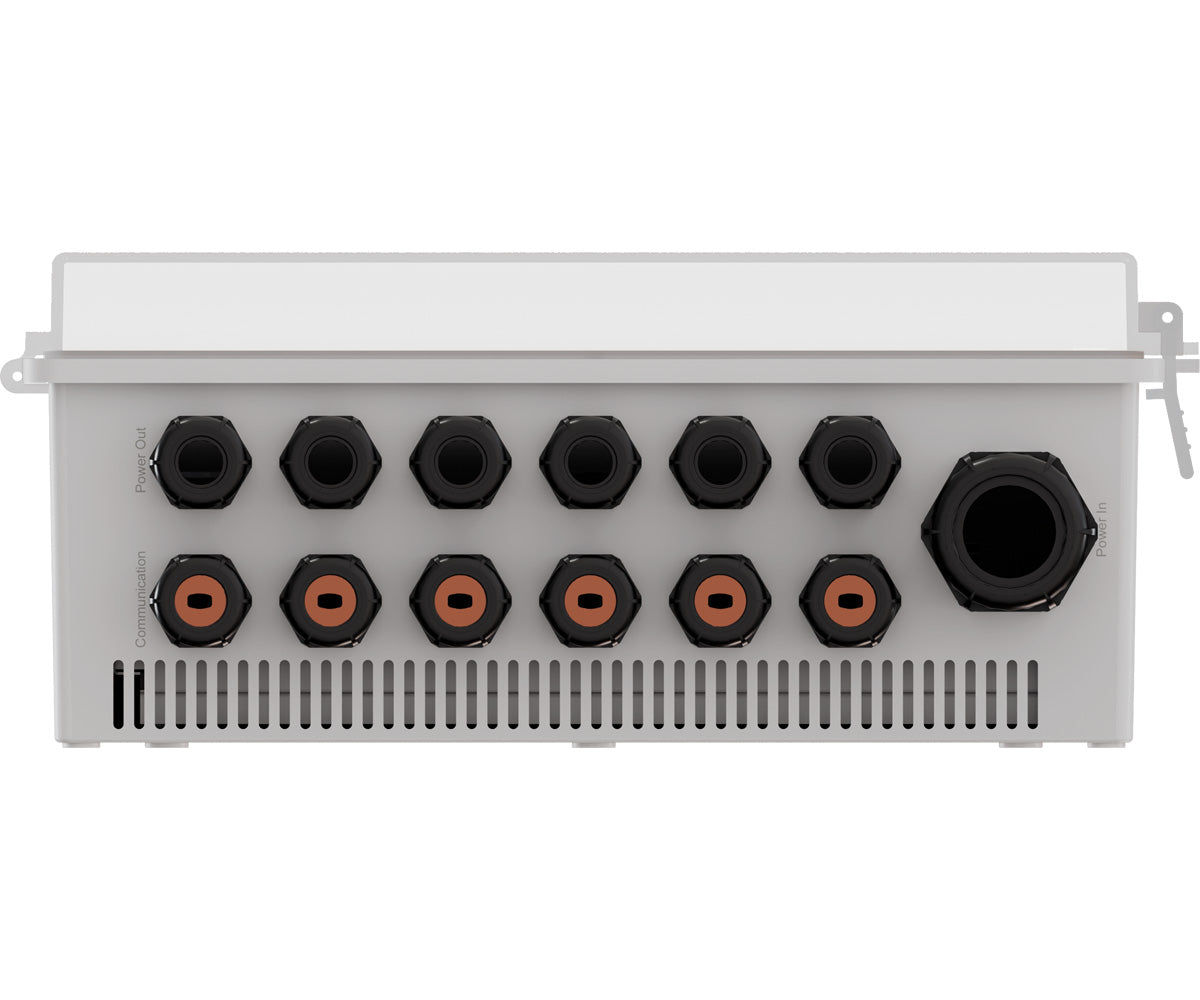

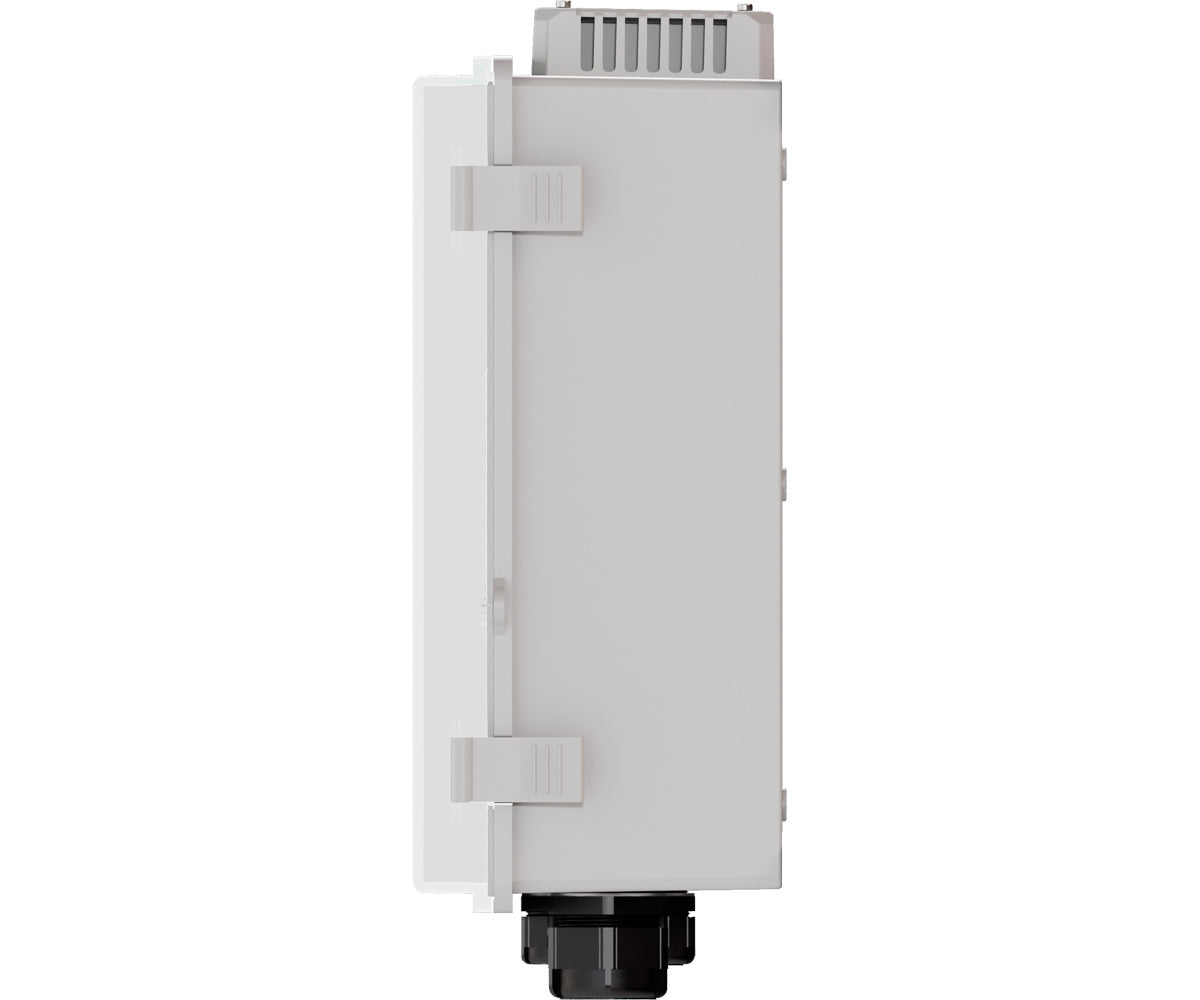

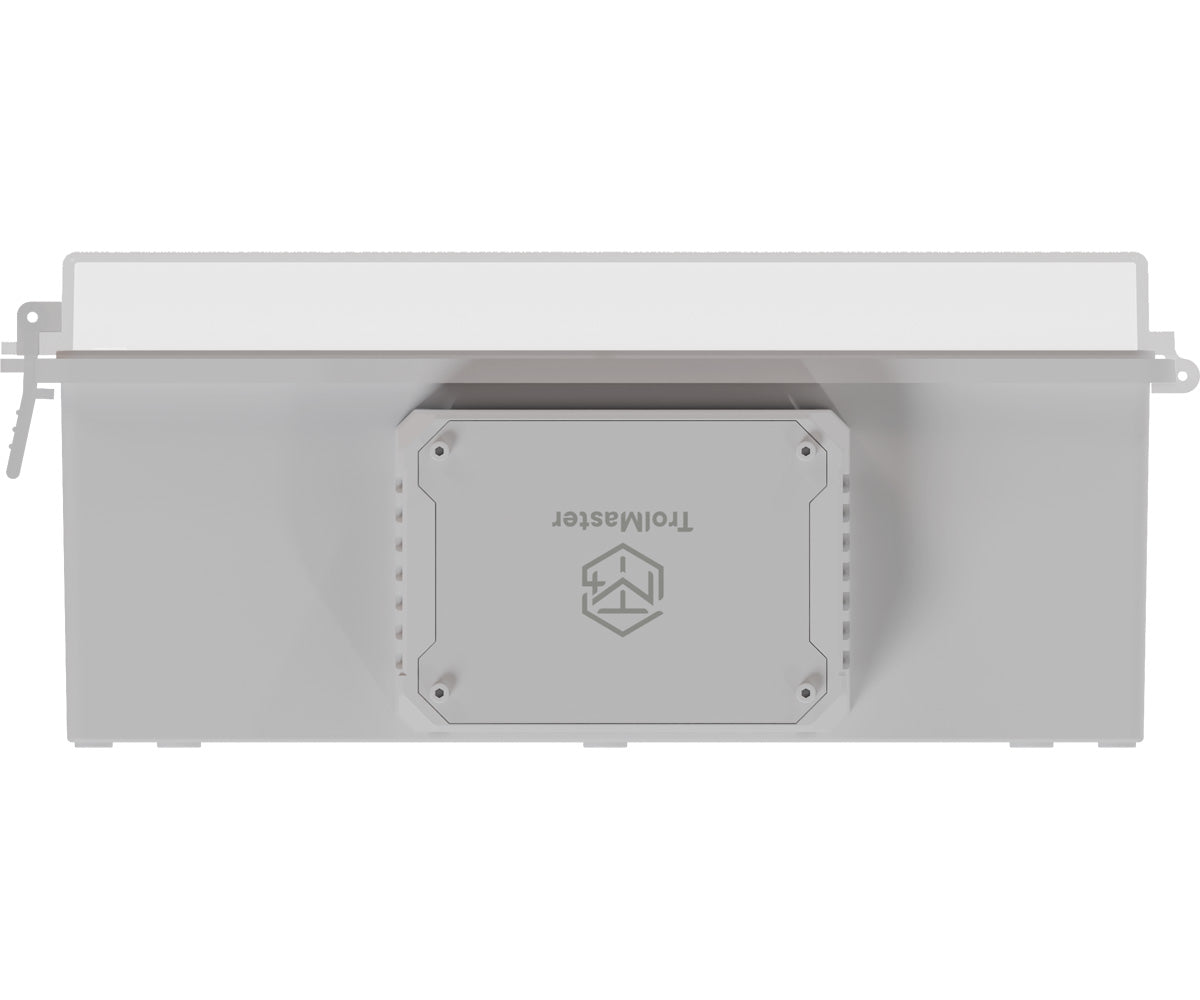

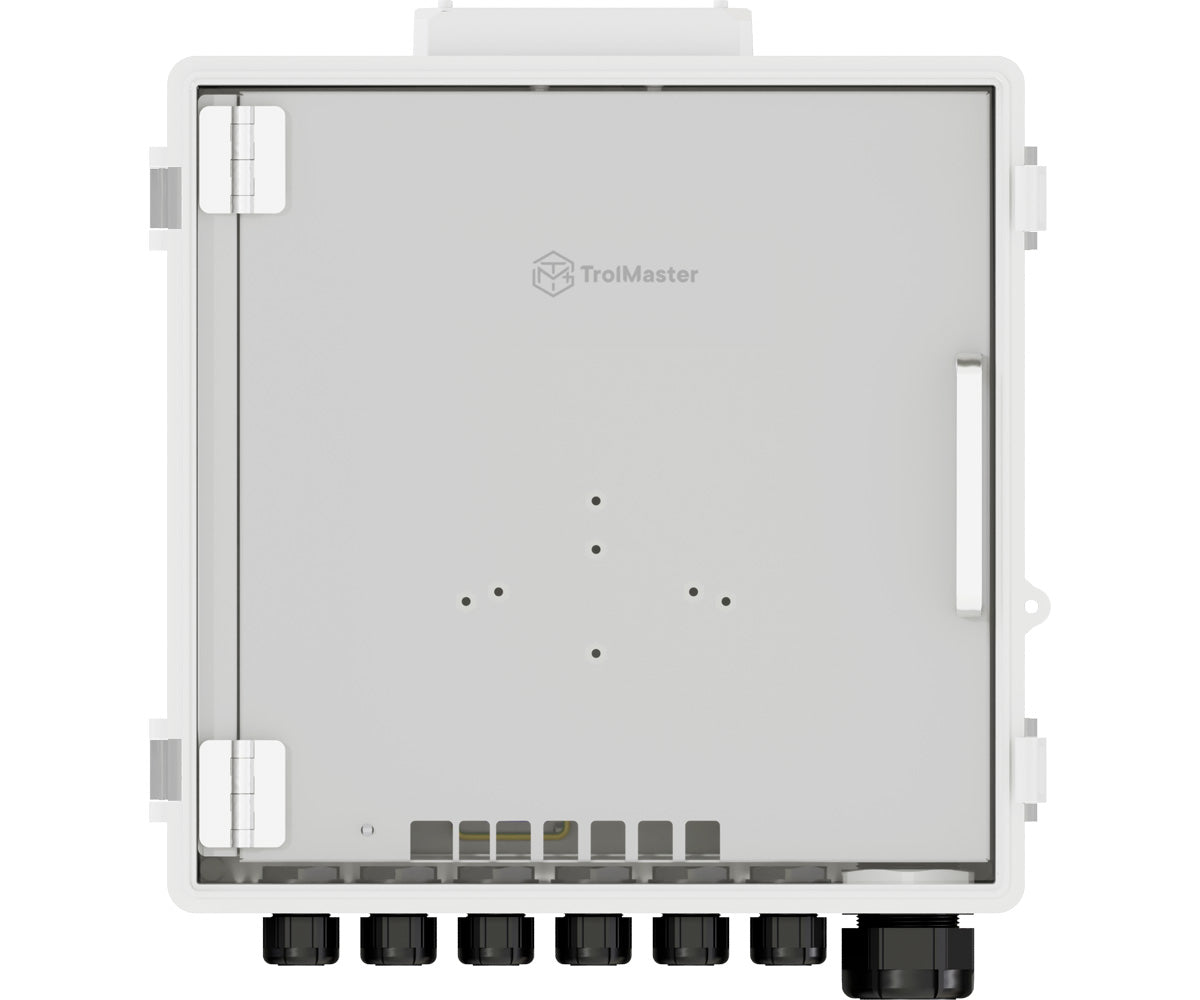

TrolMaster Mini Controller Cabinet (100-277V) (SCC-4)
TrolMaster Mini Controller Cabinet (100-277V) (SCC-4)
Regular price
$ 439.00 USD
Regular price
Sale price
$ 439.00 USD
Unit price
/
per
Couldn't load pickup availability

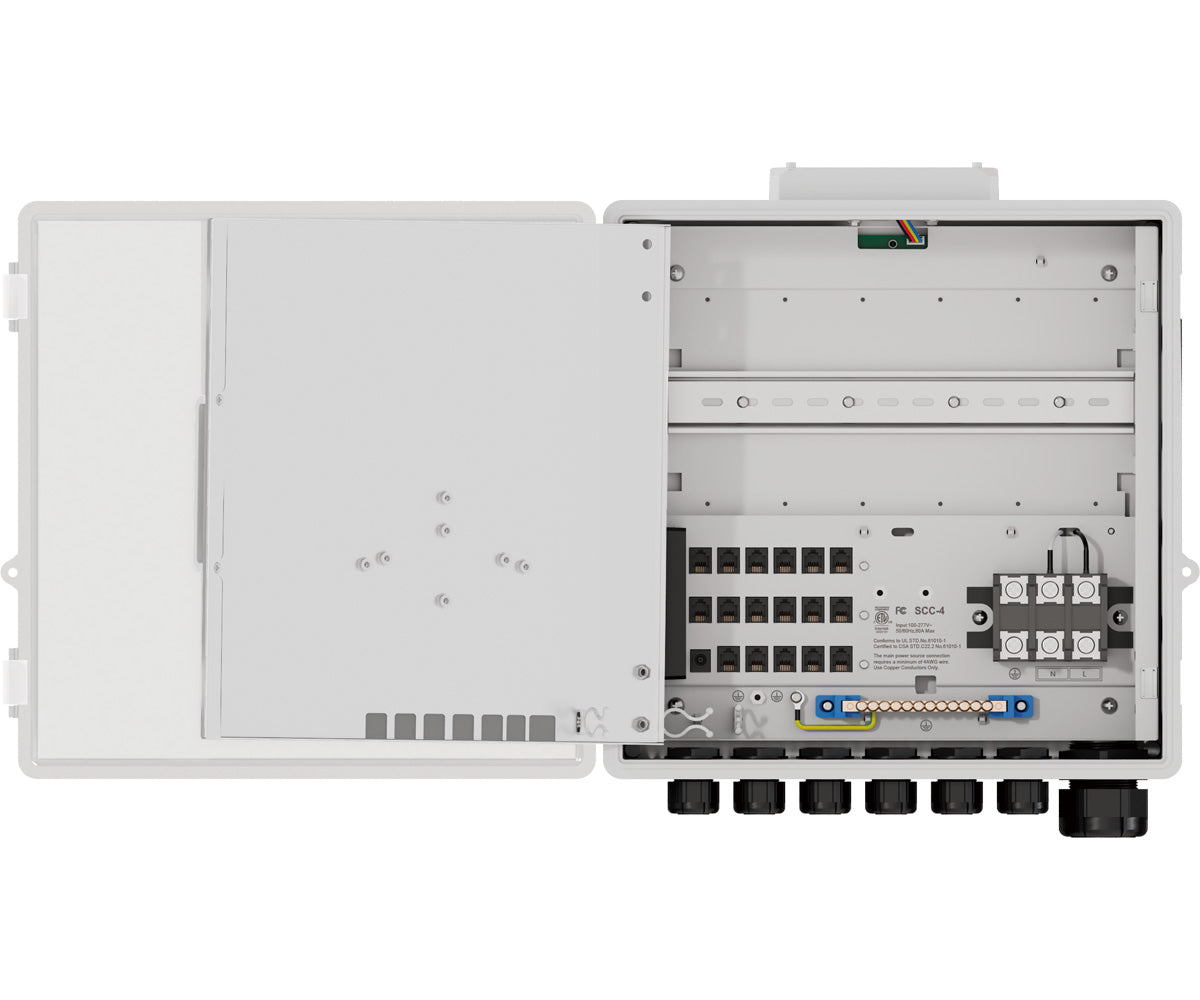

The SCC-4 Mini Controller Cabinet is a compact, all-in-one control solution designed to work with TrolMaster environmental controllers like the Green-X (GCS-1), Hydro-X (HCS-1), Aqua-X (NFS-1), Carbon-X (CDA-1), or Tent-X (TCS-1). It provides a clean, organized enclosure to hold the main controller and up to 6x DSR-1 Relay Device Stations, protecting your equipment while simplifying setup and maintenance.
Built for performance and ease of use, the SCC-4 offers a professional installation platform that keeps wiring and device modules neatly arranged, clean, and dry.
Specifications
Cabinet Capacity:
Dimensions: 15.55in × 15.55in × 6.69 in
Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
Temperature Resistance: 0-40°C
Input Voltage: 100–277 V~, 50/60 Hz
Maximum Output Current: 60A
Built for performance and ease of use, the SCC-4 offers a professional installation platform that keeps wiring and device modules neatly arranged, clean, and dry.
Specifications
Cabinet Capacity:
- Splitter Board #1: 6 ports (top)
- Splitter Board #2: 6 ports (top)
- Splitter Board #3: 5 ports (top)
Dimensions: 15.55in × 15.55in × 6.69 in
Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
Temperature Resistance: 0-40°C
Input Voltage: 100–277 V~, 50/60 Hz
Maximum Output Current: 60A
